ArcGIS Pro 3.0 Dimensioning SDK - graphic elements option settings

[DirkTillmanns]

Hello,

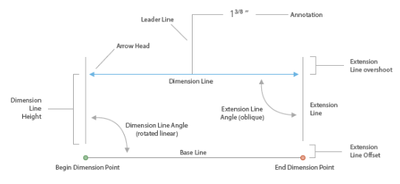

We come across in the ArcGIS Pro 3.0. Dimension API for fatal errors. All methods for setting the visibility of graphic elements throw an "Ot of range exception". A Pro enumeration is passed, so you can hardly do anything wrong. This means that the functionality is completely unusable!

• SetDimensionExtensionOption
• SetDimensionLineOption
• SetDimensionMarkerOption

https://pro.arcgis.com/en/pro-app/latest/sdk/api-reference/topic21935.html

At esri colleagues, can you help?

Best regards

Dirk

[DirkTillmanns]

I implemented a workaround that implements the option settings directly through entries in the row fields of the feature. But that is not an acceptable way.

[DirkTillmanns]

Did not work because of enum change.

[DirkTillmanns]

Hallo Esri colleagues,

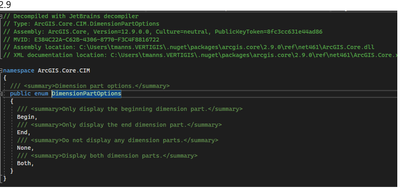

I could not believe! 😰  Esri changed an existing enumeration with the version change from 2.9 to 3.0.

And even worse! 😝 This is an enumeration whose values ​​are written directly into a field of a DimensionFeature.

This means that all data recorded with 2.9 is broken.



[CraigWilliams]

Datasets created in ArcGIS 2.x values are not broken. The values for dimension field integer values are the same between 10.x, ArcGIS Pro 2.x, and ArcGIS Pro 3.x dimensions. The CIM enum was incorrect in ArcGIS Pro 2.x though, so in ArcGIS Pro 2.x we converted between old and new integers when writing the field values into dimension feature classes. At ArcGIS 3.0, a breaking change release, we took the time to fix this discrepancy and matched the CIM enum integers to the persisted values. Unfortunately when we did this we missed a logic error in validation of input, which is why Out of Range is being reported. This Out of Range issue will be fixed in ArcGIS Pro 3.1 and we'll look to backport it to a 3.0 patch if possible.

[DirkTillmanns]

Hi Craig,

Could you please take a look at the following post. Same place, new error.

Thanks

https://community.esri.com/t5/arcgis-pro-sdk-questions/setting-any-dimensioning-options-programmatic...
