Display related records in a popup in a nice table

1747
9
03-21-2023 12:22 PM
Labels (3)
NorthSouthGIS
Occasional Contributor II

I have a table of related work history on a point asset layer. For each point representing an asset, there are multiple related records storing the work history. Here is the Arcade expression I used to display in the pop up.

Note: This only works right now when set up as an Arcade Expression content type, rather than an arcade expression referenced in a Text content type.



// Get the related work orders
var includedFields = ['Type','completion_date','real_price'];

var history = FeatureSetByRelationshipName($feature, 'relationshipName', includedFields);

if (count(history) > 0){

  // Get the schema of the WorkOrders table
  var woSchema = Schema(history);

  // Get the fields from the schema
  var fields = woSchema.fields;

  // Define an array to store the table headers
  var headers = [];

  // Loop through the fields and add a header to the array for each one
  for (var i in fields) {
    var field = fields[i];
    if(Includes(includedFields, field.name)) {
      Push(headers,'<th style="border: 1px solid #ddd;padding: 8px;background-color: #eee;">' + field.alias + '</th>');
    }
  }

  // Define the HTML table header row
  var headerRow = '<tr style="border: 1px solid #ddd;padding: 8px;">' + concatenate(headers) + '</tr>';

  // Define an array to store the HTML table rows
  var rows = [];

  // Loop through each related work order and add an HTML table row to the array
  for (var i in history) {
    var wo = i;

    // Define an array to store the data for the current row
    var rowData = [];

    // Loop through the fields and add the value of each field to the rowData array
    for (var j in fields) {
        //Skip Object ID Field
        if(fields[j].alias != 'OBJECTID_1') {
          Push(rowData, '<td style="border: 1px solid #ddd;padding: 8px;">' + wo[fields[j].name] + '</td>');
        }
    }

    // Concatenate the rowData array into a string with table data tags
    var row = '<tr style="border: 1px solid #ddd;padding: 8px;">' + concatenate(rowData) + '</tr>';

    // Push the resulting string into the rows array
    push(rows, row);
  }

  // Define the HTML table using the header row and the rows array
  var table = '<p><h3>Work History</h3></p><div><table style="font-family: arial, sans-serif;border-collapse: collapse;text-align: left;">' + headerRow + concatenate(rows) + '</table></div>';
  // Return the HTML table
  return {
	type : 'text',
	text : table //this property supports html tags
  }
//return table;

} else {
  return {
	type : 'text',
	text : '<p><h3>Work History</h3></p><p>No related work history</p>' //this property supports html tags
  }
}
9 Replies
Teresa_Blader
Occasional Contributor III

If I understand, "Text" option in popup is based on a "feature" output type from "Attribute Expressions"; whereas "Arcade" option allows return of "feature sets" which is vital for returning more than 1 result like it sounds like you are doing by creating and displaying a table?

"Chart" option is the same. A chart based on a related table needs multiple values, so its based on the return of a feature set so the "Arcade" option has to be used, with the "chart template", not "Chart".

If you're looking to output a single value from the expression, then it needs to be entered in "Attribute Expressions" and then referenced in "Text" or "Table". If you're looking to output a set of values as a feature set, then it needs to be completely built and designed in "Arcade".

Someone from Esri can correct me if I'm wrong, but that's what I've learned so far.

Teresa Blader
Olmsted County GIS Specialist
0 Kudos
NorthSouthGIS
Occasional Contributor II

To be clear, I don't have any issues with my script, just wanted to share for anyone out there in case it is useful. The 'Related Records' content type still requires you expand and drill down into a related record and you don't have much control over the configuration of what is displayed and how. This arcade script allows me to get all related record information, get the info I only care about from the related record table, and then display it in a nicely formatted html table.

Teresa_Blader
Occasional Contributor III

Ha! I was trying to figure out what your question was... being posted in ArcGIS Online Questions...

Teresa Blader
Olmsted County GIS Specialist
0 Kudos
NorthSouthGIS
Occasional Contributor II

I didn't see an option to post any sort of blog post anymore in the Community. I think they updated it recently... Not sure

0 Kudos
Teresa_Blader
Occasional Contributor III

Eh, it kind of makes sense as it is a question others may have! You can post on ArcGIS Online, if you back up one link.


Sorry for trolling your non-question! 😅

Teresa Blader
Olmsted County GIS Specialist
0 Kudos
Marshal
New Contributor III

Just wanted to say thank you for posting this.  It was extremely helpful for some popups I was trying to create and had hit a wall.  This helped me push through and make the solution better than I originally envisioned.  Thanks a bunch!!

0 Kudos
Paco
by
Occasional Contributor

Hi @NorthSouthGIS .   thanks for this Post!  do you have a screenshot of your Popup output?  I'm hoping your Post will help me get past my Related Records issue.  thx!

VanessaSimps
Occasional Contributor III

was going to ask the same! I can get the express to pass the check and save, but I am still not able to see the data in the pop-up? I must be missing something here!

0 Kudos
Marshal
New Contributor III

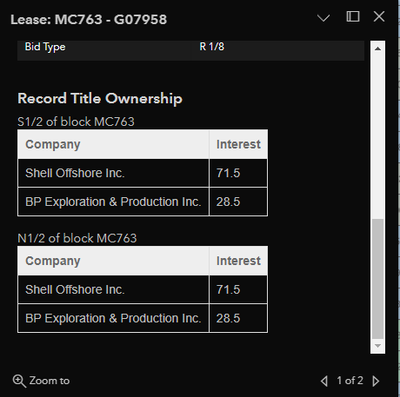

It would look something like this.  Is the sharing configured appropriately on the related table service?  Users without sharing permissions on the related table service won't see the table in the popup.
