Monitor 2024.1 missing Service Request data (number of requests, response times, etc)

700
12
Jump to solution
03-12-2025 07:18 AM
ChaseBarnard
Occasional Contributor

I've recently installed Monitor 2024.1 on a new server.  I had previously been running 2023.* on a different machine. I've successfully registered 4 agents on 4 separate machines in our Enterprise.  Monitor Server is recognizing all the components including 323 service components.  Likewise, all the infrastructure telemetry seems to be coming in correctly.  What I am not seeing is any data on the ArcGIS-side including data on requests received, request response time, ArcSOC instances used, etc.  Logs indicate various codes including "E_AUTH_TOKEN_EXPIRED" and "E_AUTH_INVALID" but I haven't been able to track down the issue.  Any suggestions?

Tags (2)
1 Solution

Accepted Solutions
DerekLaw
Esri Esteemed Contributor

Hi @ChaseBarnard & @jonathan_debrandt_infra,

What I am not seeing is any data on the ArcGIS-side including data on requests received, request response time, ArcSOC instances used, etc.

We are aware of this bug (it's been discussed in this thread) and this will be addressed in the forthcoming ArcGIS Monitor 2024.1.1 patch that is scheduled for release on March 20. Apologies for the inconvenience.

Hope this helps,



View solution in original post

12 Replies
jonathan_debrandt_infra
Emerging Contributor

I have the exact same issue while monitoring 2 ArcGIS platforms at version 11.1 (one high-available instance and one regular instance) with Monitor 2024.1 (after upgrading from version 2023.3).

I found out that the usage reports created on the ArcGIS server by Monitor return NO DATA for all web services. It means I can't monitor following metrics at web service (although I can at server level):



  • RequestCount
  • RequestsFailed
  • RequestsTimedOut
  • RequestMaxResponseTime
  • RequestAvgResponseTime

I think the issue is related to how Monitor configures the usage report query. It uses following configuration (that returns no data)

{
"reportname": "agm-75cc870e-a948-4d0b-a3e9-bc1d06923c66",
"since": "CUSTOM",
"from": 1741791870908,
"to": 1741792200908,
"aggregationInterval": 5,
"queries": [{
"resourceURIs": [
"services/",
"services/system/cachingcontrollers:gpserver.GPServer",

[... ]

While the usage report created by Monitor 2023.3 used following configuration (this one returns data):

{
"reportname": "copy-from-agm-prd-v2023.1",
"since": "LAST_DAY",
"from": null,
"to": null,
"aggregationInterval": 1,
"queries": [{
"resourceURIs": [
"services/",
"services/System/CachingControllers.GPServer",

[...]



Unfortunetaly, the usage report config cannot be changed because it gets overwritten every 5 minutes by Monitor.

Is there a fix for this ? This issues makes Monitor mostly useless...



0 Kudos
DerekLaw
Esri Esteemed Contributor

Hi @ChaseBarnard & @jonathan_debrandt_infra,

What I am not seeing is any data on the ArcGIS-side including data on requests received, request response time, ArcSOC instances used, etc.

We are aware of this bug (it's been discussed in this thread) and this will be addressed in the forthcoming ArcGIS Monitor 2024.1.1 patch that is scheduled for release on March 20. Apologies for the inconvenience.

Hope this helps,



HazelRiordan
Occasional Contributor

Has the release date been moved back, by chance?

Thanks!

NateRenn
Occasional Contributor

Any update to the update release date?

0 Kudos
HazelRiordan
Occasional Contributor

I see the patch out there today.

NateRenn
Occasional Contributor

Thanks, I just need to click on the downloads to see the correct version

0 Kudos
NicolasNi1977
New Contributor

@DerekLaw

We have applied the fix using version 2024.1.1; however, all feature services are still displaying no data. Additionally, the ArcGIS Server Observer is also not showing any data.

Could you kindly advise on possible next steps or recommend any actions we can take to resolve this issue?

0 Kudos
DerekLaw
Esri Esteemed Contributor

Hi @NicolasNi1977,

> ... however, all feature services are still displaying no data. Additionally, the ArcGIS Server Observer is also not showing any data.

I'm not clear on what you mean. Are you saying after upgrading to Monitor 2024.1.1, your registered feature services are no longer reporting any data? What do you mean by the "ArcGIS Server Observer is also not showing any data" - which observer? Inventory? Metrics? Can you please elaborate?

- Which release of Monitor did you upgrade from?
- Were metrics being reported for the feature services before the upgrade?
- Is this for all registered ArcGIS Server sites with Monitor, or just some of them?
- What release of ArcGIS Server is showing this behavior?
- Can you provide some screenshots or error messages?



0 Kudos
LachlanWainwright
Occasional Contributor

Hi @ChaseBarnard

I have a similar problem with one of my AGS sites and 2024x

I have 2 1091 ags sites connected to monitor, one is working as expected and suffering the problem above where we don't get values but the graphs show the grid etc & to be fixed soonly with the patch.



The other site does not capture any data at all and the monitor Server page looks like this, NO DATA:

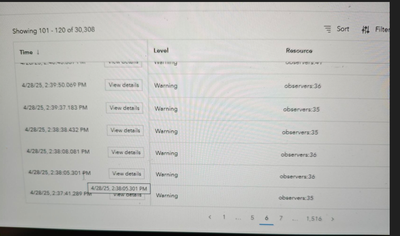

I have the same errors in the log as per yous above as well as an EPROTO.

If I manually change the from/to times in the report and manually run the observer things work and the graph changes and had data.  But it won't run on it's own again.  The report stays as LAST_DAY and won't change between LAST_DAY, 1min (when the report runs) and then going back to CUSTOM from/to with future computer time and 5mins like the other ags machines.

I have an ticket with ESRI Australia and we had this break through yesterday based on your post. Thanks a bunch mate!

This is my original post from a few weeks ago https://community.esri.com/t5/arcgis-monitor-questions/metrics-for-arcgis-server-not-displaying/m-p/...



@DerekLaw will the patch fix this problem as I believe it's different to the values not getting captured?

thanks 🙂



0 Kudos
