MediaContent popup element contains a chart with line's type or column's type or bar 's type and with a series porpertie (ChartMediaInfoValueSeries[])

1788
2
Jump to solution
07-23-2022 01:36 PM
Bertrand_Laurancin
Occasional Contributor

Hello,

I want use a MediaContent popup element contains a chart with line's type or column's type or bar 's type and with a series propertie (ChartMediaInfoValueSeries[]).

https://developers.arcgis.com/javascript/latest/api-reference/esri-popup-content-support-ChartMediaI...
https://developers.arcgis.com/javascript/latest/api-reference/esri-popup-content-BarChartMediaInfo.h...
https://developers.arcgis.com/javascript/latest/api-reference/esri-popup-content-ColumnChartMediaInf...
https://developers.arcgis.com/javascript/latest/api-reference/esri-popup-content-LineChartMediaInfo....

I want an array for ChartMediaInfoValueSeries[] with my custom values.

However, I don't understand the help and how it works and there is no sample.

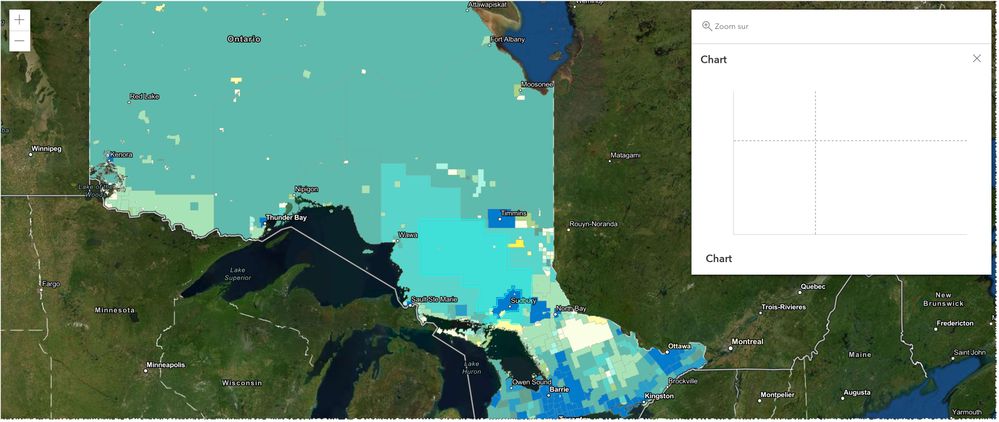

Here it is my sample :
https://codepen.io/blaurancin/pen/xxWrQMW?editors=1000
https://codepen.io/blaurancin/live/xxWrQMW







<html dir="ltr">

<head>
  <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
  <meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no" />
  <title>Line Chart | ArcGIS API for JavaScript 4.24</title>

  <link rel="stylesheet" href="https://js.arcgis.com/4.24/esri/themes/light/main.css" />
  <script src="https://js.arcgis.com/4.24/"></script>

  <style>
    html,
    body,
    #mapDiv {
      height: 100%;
      width: 100%;
      margin: 0;
      padding: 0;
    }
  </style>

  <script>
    require(["esri/Map", "esri/views/MapView", "esri/layers/FeatureLayer", "esri/core/reactiveUtils"],
      (Map, MapView, FeatureLayer, reactiveUtils) => {
        // setup the map
        const map = new Map({
          basemap: "hybrid"
        });
        const view = new MapView({
          container: "mapDiv",
          map: map,
          center: [-81.31557659295213, 48.12557766494745],
          zoom: 6,
          popup: {
            dockEnabled: true,
            dockOptions: {
              buttonEnabled: false,
              breakpoint: false
            }
          }
        });
        const featureLayer = new FeatureLayer({
          url: "https://services.arcgis.com/6iGx1Dq91oKtcE7x/ArcGIS/rest/services/Census_Data/FeatureServer/2",
          popupTemplate: {
            title: "Chart",
            content: [
              // {
              //   // It is also possible to set the fieldInfos outside of the content
              //   // directly in the popupTemplate. If no fieldInfos is specifically set
              //   // in the content, it defaults to whatever may be set within the popupTemplate.
              //   type: "fields", // FieldsContentElement
              //   fieldInfos: [{
              //       fieldName: "Population ",
              //       visible: false,
              //       label: "Population",
              //       format: {
              //         places: 0,
              //         digitSeparator: true
              //       }
              //     },
              //     {
              //       fieldName: "LaborForce",
              //       visible: false,
              //       label: "LaborForce",
              //       format: {
              //         places: 0,
              //         digitSeparator: true
              //       }
              //     },
              //     {
              //       fieldName: "Household",
              //       visible: false,
              //       label: "Household",
              //       format: {
              //         places: 0,
              //         digitSeparator: true
              //       }
              //     },
              //     {
              //       fieldName: "Job",
              //       visible: false,
              //       label: "Job",
              //       format: {
              //         places: 0,
              //         digitSeparator: true
              //       }
              //     },
              //   ]
              // },
              {
                type: "media",
                mediaInfos: [{
                  title: "<b>Chart</b>",
                  type: "line-chart",
                  caption: "",
                  value: {
                    // fields: ["Population", "LaborForce", "Household", "Job"],
                    series: [{fieldName: "val1", value: 10}, {fieldName: "val2", value: 50}, {fieldName: "val3", value: 100}, {fieldName: "val4", value: 150}, {fieldName: "val1", value: 200},],
                    normalizeField: null,
                    tooltipField: ""
                  }
                }, ]
              }
            ]
          },
          outFields: ["*"]
        });
        map.add(featureLayer);
//         reactiveUtils.when(
//           () => view?.stationary === true,
//           async () => {
//             console.log(view);

//           });
      });
  </script>
</head>

<body>
  <div id="mapDiv"></div>
</body>

</html>








Please, could you help me ?

How can I use my own values (without a field) for media's type of a popup ?

Thank you so much for your help,

Bertrand

0 Kudos
1 Solution

Accepted Solutions
LaurenBoyd
Esri Contributor

Hi @Bertrand_Laurancin -

The ChartMediaInfoValueSeries class is a read-only support class that represents information specific to how field data should be plotted in a chart so you cannot build your own charts using this class.

You can take advantage of other charting APIs if you're looking to build custom charts not based on field info within your popups. Here's an example of how to do this via ChartJS and popup CustomContenthttps://codepen.io/laurenb14/pen/vYRdEaj

There are a couple examples of working with ChartJS in our samples as well:

Hope this helps!

Lauren

View solution in original post

0 Kudos
2 Replies
LaurenBoyd
Esri Contributor

Hi @Bertrand_Laurancin -

The ChartMediaInfoValueSeries class is a read-only support class that represents information specific to how field data should be plotted in a chart so you cannot build your own charts using this class.

You can take advantage of other charting APIs if you're looking to build custom charts not based on field info within your popups. Here's an example of how to do this via ChartJS and popup CustomContenthttps://codepen.io/laurenb14/pen/vYRdEaj

There are a couple examples of working with ChartJS in our samples as well:

Hope this helps!

Lauren
0 Kudos
Bertrand_Laurancin
Occasional Contributor

Hello @LaurenBoyd ,

Thank you for your help.

Finally i used chartJS :

https://codepen.io/blaurancin/pen/JjLrKqr

The documentation indicates :

"function - Content may be defined with a JavaScript function that returns any of the above-mentioned elements. This is useful when your popup requires additional processing or functionality than what is provided with the four content types listed above. For example, assume that you would like to display charts using third-party JavaScript libraries or categorize information into separate tabs"



Thank you,

Regards,

Bertrand
