Create or using other units than "€" and "%" ?

[JasonBOCQUET]

Hi, my question is simple, how can i set some different units that can I use on my infographics ?

I have nothing else than € and % ?

thanks;

[CherylHagevik]

Hi @JasonBOCQUET Thanks for the details of your question. The format options you see in the builder are based on the particular variable that you are configuring. Only options that are compatible with that variable will be seen.

Which type of units are you interested in adding to your variable value?

[JasonBOCQUET]

Hi @CherylHagevik thanks for your reply. I have a lot of units that i want to use. For example square meters (m²) or €/m²/year

quick list : km, km², hab., étab. and some other things like that

How can I configure my variable to have other format option ?

[CherylHagevik · Accepted solution]

@JasonBOCQUET Thank you for the additional details. I can see how being able to define your own units would be helpful, especially when working with custom variables. This may be good enhancement to the infographics builder in the future.

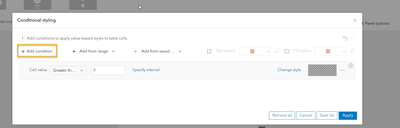

For now, I was able to use Conditional styling to achieve the same goal. Here are the steps you can try:

1. When editing your variable, use the option for Text styling

2. Add a condition that will include all results for the variable

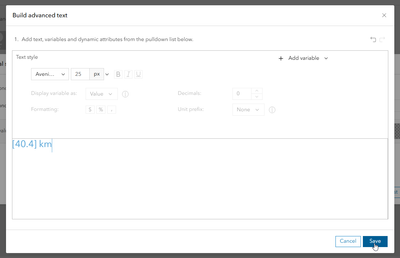

3. Use the option for Add Advanced text

4. Add the value for the variable

5. Add your unit to the text and Save

6. When you run the template you will see the variable value with the text you added

[JasonBOCQUET]

Hi @CherylHagevik

I want to follow your tutorial but...

I have not the "3 dot" option.

I'm on Enterprise 11.1, i have not access to this feature ?

[CherylHagevik]

@JasonBOCQUET This feature for Advanced text was added about a year ago to Online and became available starting with Enterprise 11.3.

[JasonBOCQUET]

Thanks for your answer @CherylHagevik i think there is no issue for 11.1 user.

It is possible to create a template with features on ArcGIS Online Business Analyst web app and export it to an arcgis enterprise ?

I will take your answer as a solution and wait to have another update of our enterprise then.

[CherylHagevik]

@JasonBOCQUET I do not think this would work because this newer feature required making changes on the software and template sides.
