How to display widgets horizontally outside mapview

2634
5
Jump to solution
02-06-2020 02:45 PM
DianeBird
New Contributor III

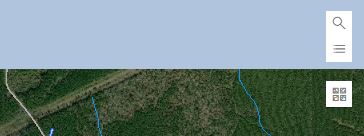

This may seem rudimentary for some, but I am new to Java. I have created an app with a separate header div and wish to display a few often used widgets in that division. They are coming out in a vertical order. How do I change the layout of the items in this division to horizontal?
