Hi. The map I am trying to export features two digital surface model (DSM) tiles (in .adf format). Unfortunately, the images do not render properly (to match my ArcGIS view when exported). Here are my steps:

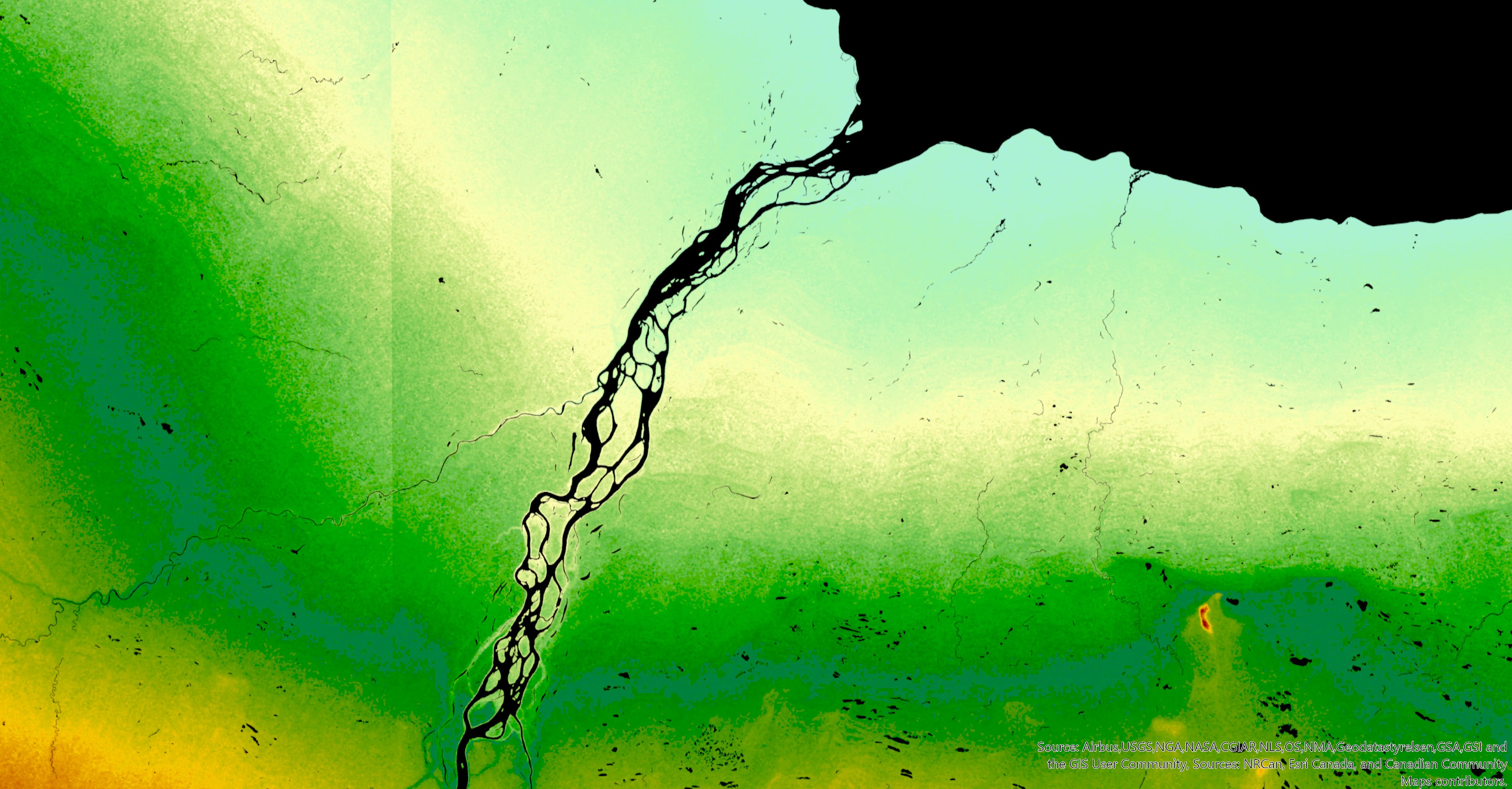

1. To make the map clear, I edited the symbology of the tiles to a "stretch" minimum maximum type. When I export, there are no issues; my JPG output matches (Image 1) what I see in the ArcGIS Pro scene.

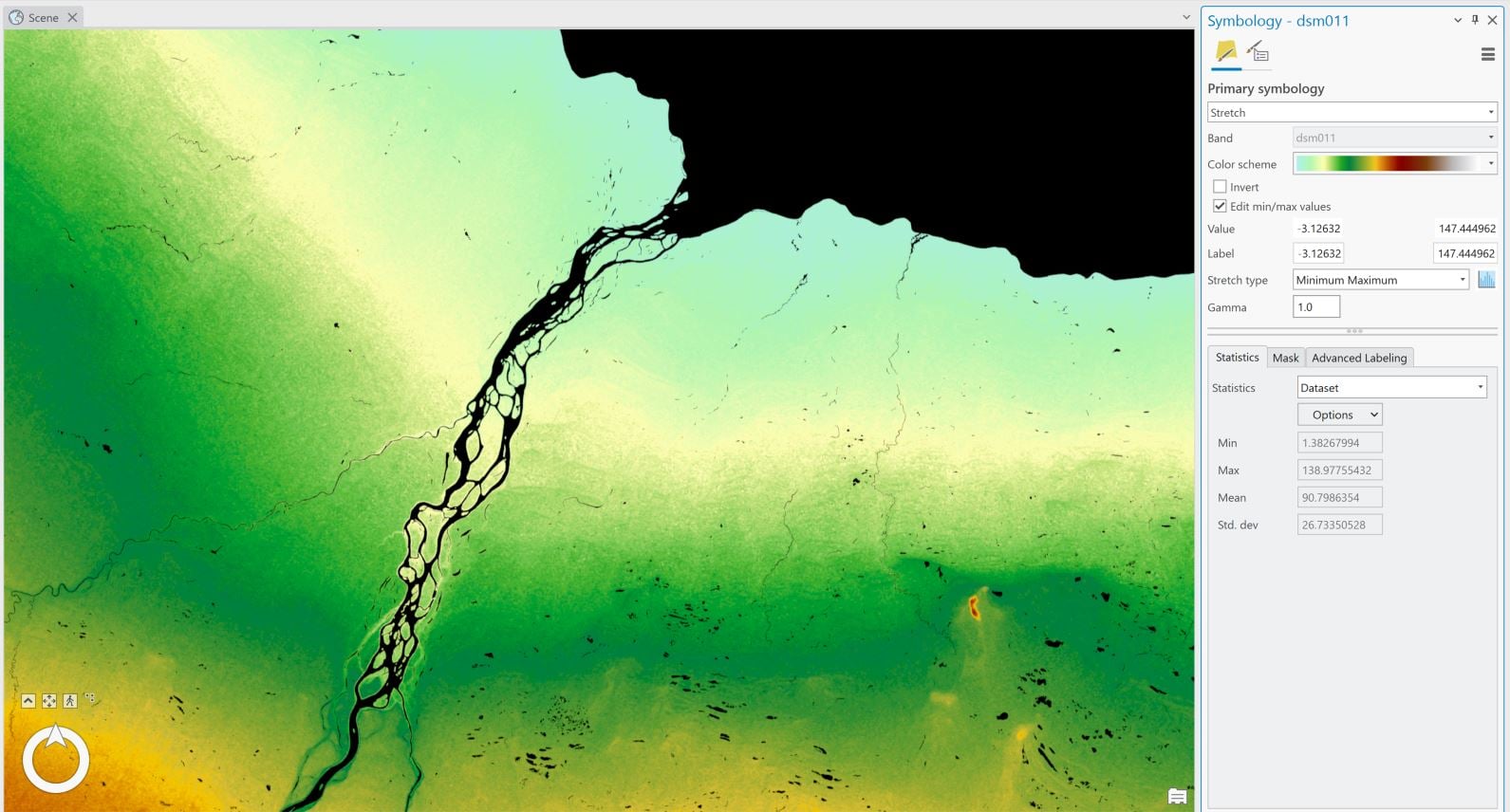

2. Since the minimum and maximums differ between the two tiles, however, I set the second tile to match the minimum and maximums of the first tile by checking the "edit min/max values" box of the symbology tab. This achieves the desired results in the ArcGIS Pro scene (Image 2).

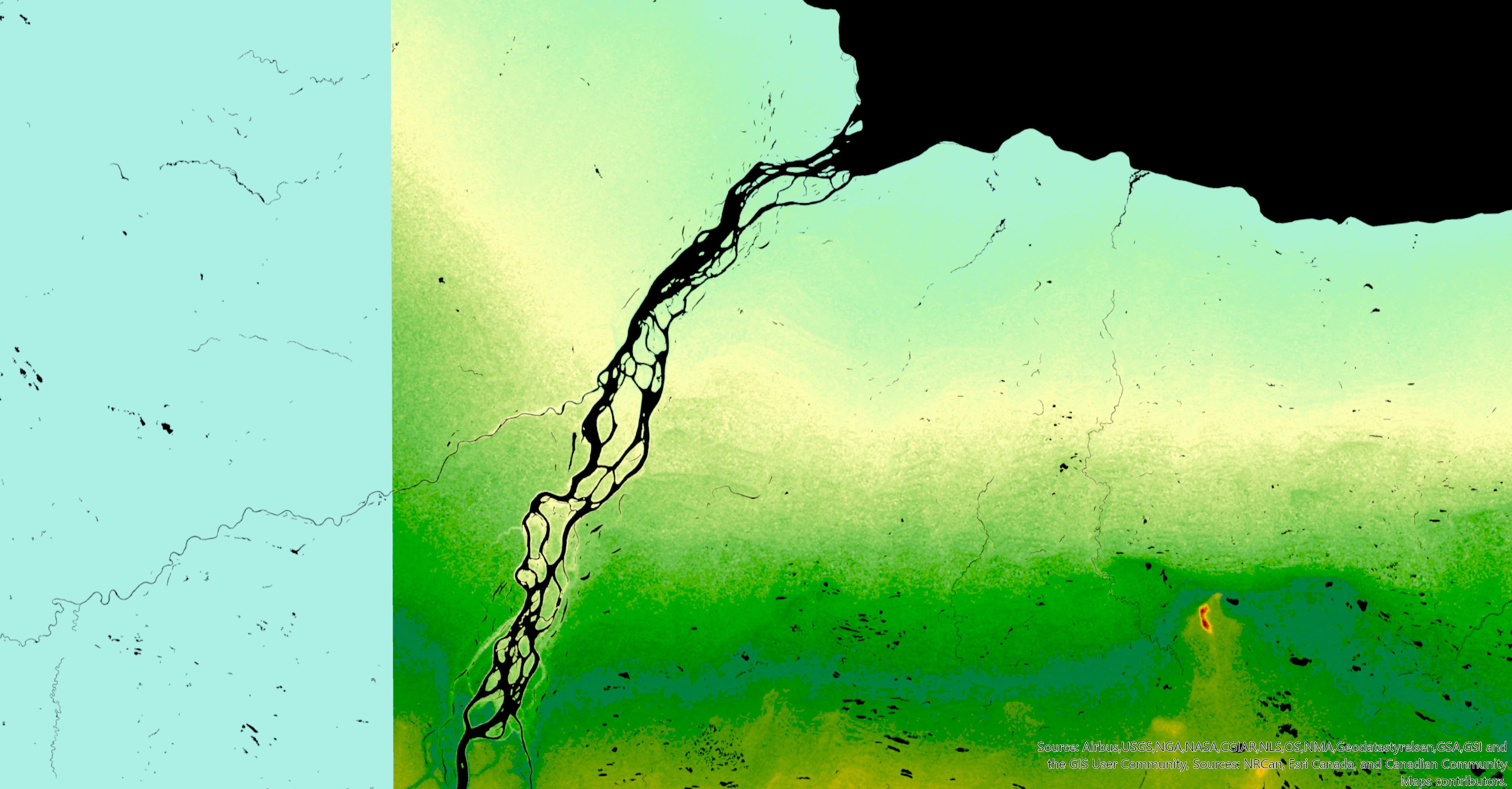

3. When I export at this final stage, however, the tile with the min/max values edited renders without any colour gradient. (Image 3). Interestingly, this result matches the ARCGIS scene if I were to select "none" as the stretch type in symbology, but I'm not sure how to fix this error.
Any suggestions on how to get my export to match my ArcGIS viewport? The issue seems only to occur with "stretch" as the symbology setting; classify, shaded relief, etc. work fine but this is not the visual representation I would like.
